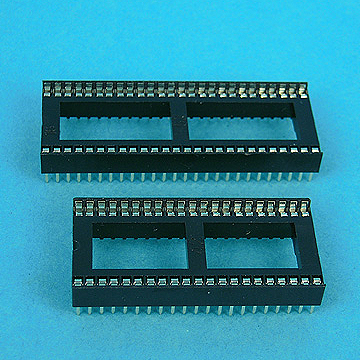

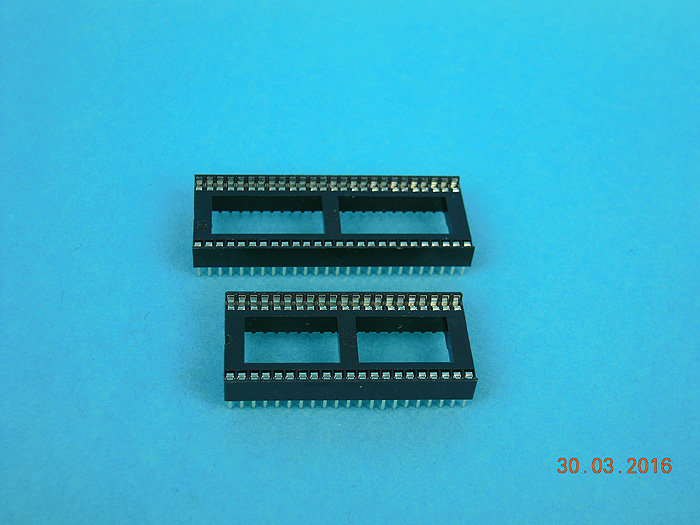

  • Interconnects Plugs, Jacks & Sockets IC sockets

MATERIAL:

Contact :
phosphor Bronze thickness 0.17mm

Contact Plating:Sn-Cu plated 120u"~200u"

Insulator: PBT-4830, UL 94V-0



SPECIFICATIONS:

Current Rating : 1A

Dielectric withstanding Voltage : 1000v RMS/minute

Insulator resistance : 5000 Megohms min.

Contact resistance : 20 milliohms intial

30 milliohms after test.

Operating temperatures :-55℃ to +85℃

Insertion force : 340g (12 oz) max.per contact

Withdrawal force :80g (2.82oz) min.per contact
